PCA-1267 Square Tubing 2'' X 12'' With Bent Pin

$75.00

In stock

Free in-store pickup

  • Experts Advice
  • On-site service and warranty

Parcel shipping

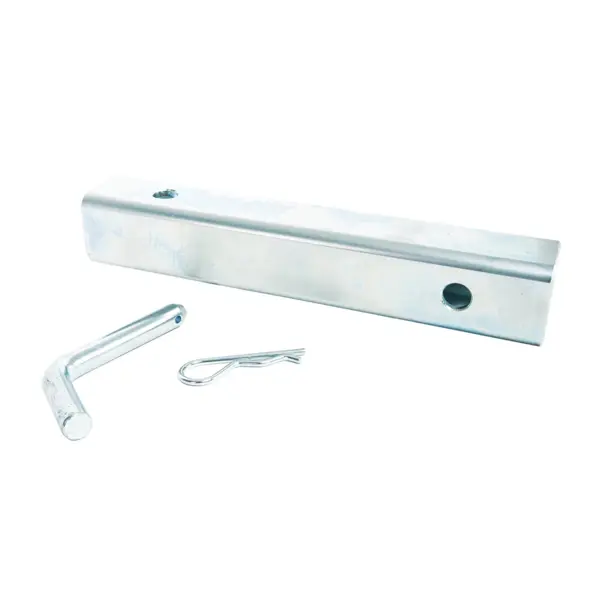

Especially designed for North American vehicles, the 50,8 mm (2 ") square tube fits snugly on all Category III towing attachments. It allows to firmly install the winch to a vehicle. It also includes a 12 mm bent pin and an 'R' tie. It is the basis of different combinations of accessories.

For all winches.

SPECIFICATIONS

Note: The square tubing can't be used alone; it must be combined with other accessories. Different combinations of accessories can be done depending on the application and the environment (see figures above).

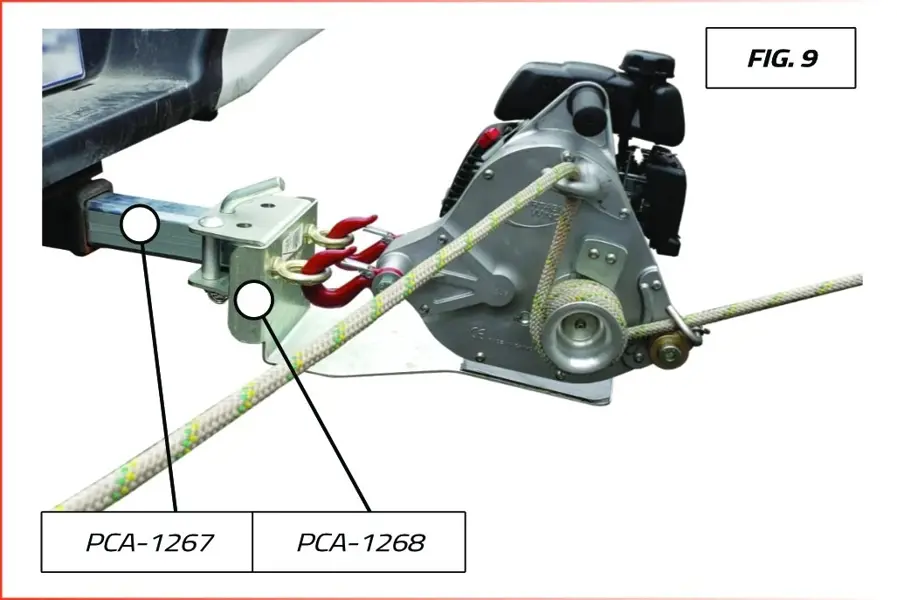

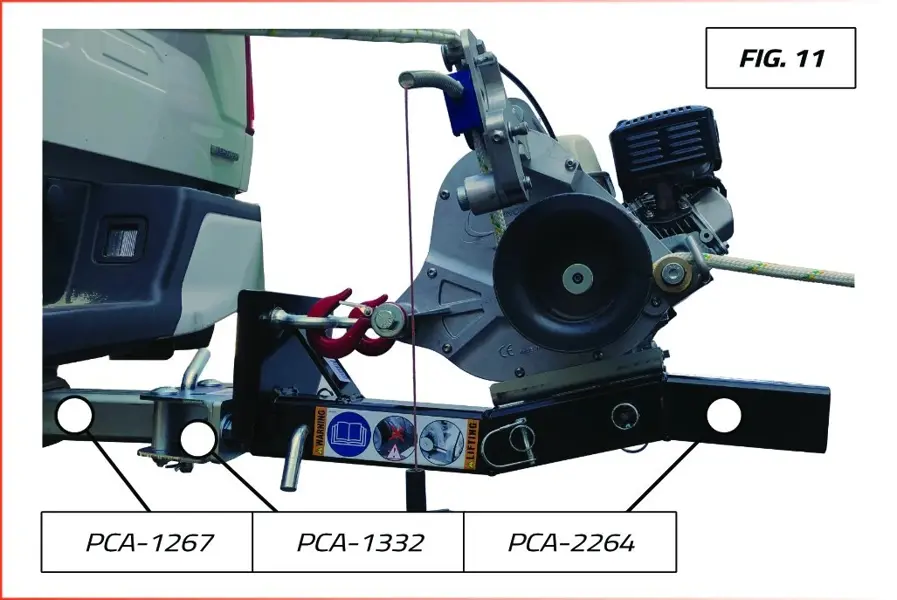

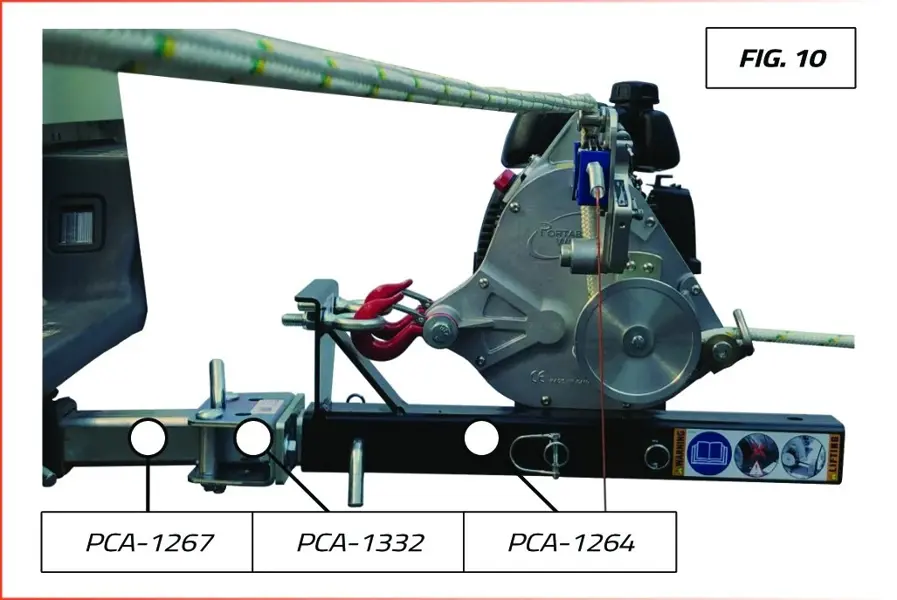

For instance, when paired with certain accessories, it will permit horizontal pulling. In such case, the winch will face the load and the rope will be in a direct line towards the winch.
See Fig. 9, 10, 11

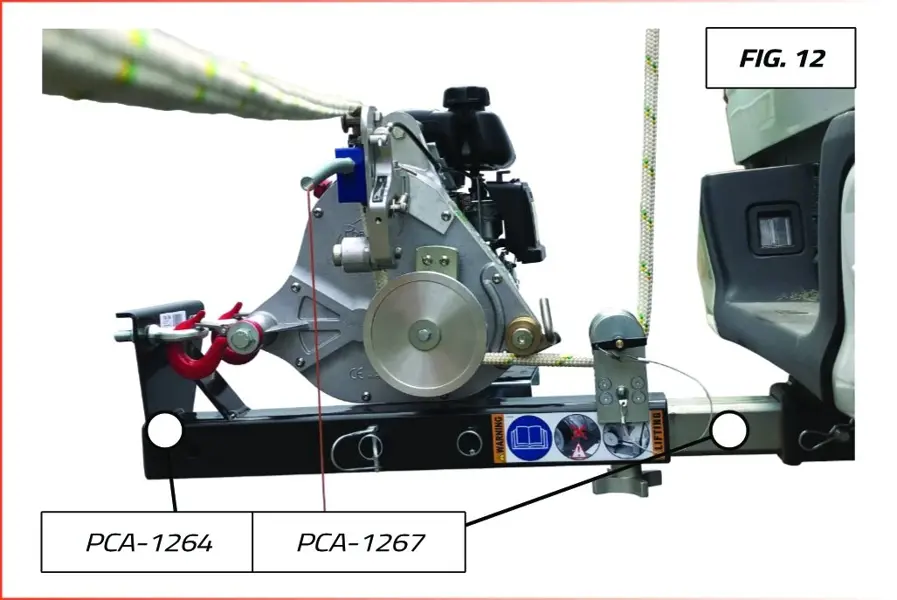

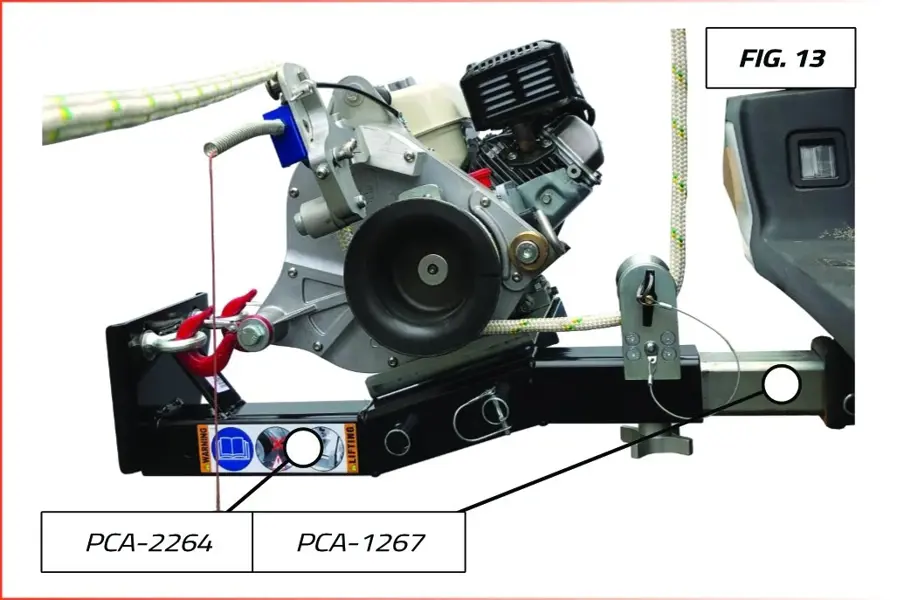

Whereas when combined with other accessories it will be used for vertical pulling. In these cases, the winch will face the anchor point and the rope will come from the top to the winch.
See Fig. 12, 13

PRODUCT TYPE WINCH ANCHORING SYSTEM
