PCA-1270
PCA-1270
Portable Winch
Stainless Steel Open Face Corner Block 100mm
Only 5 in stock
{{ selectValue }}
Free in-store pickup
- Experts Advice
- On-site service and warranty
Parcel shipping

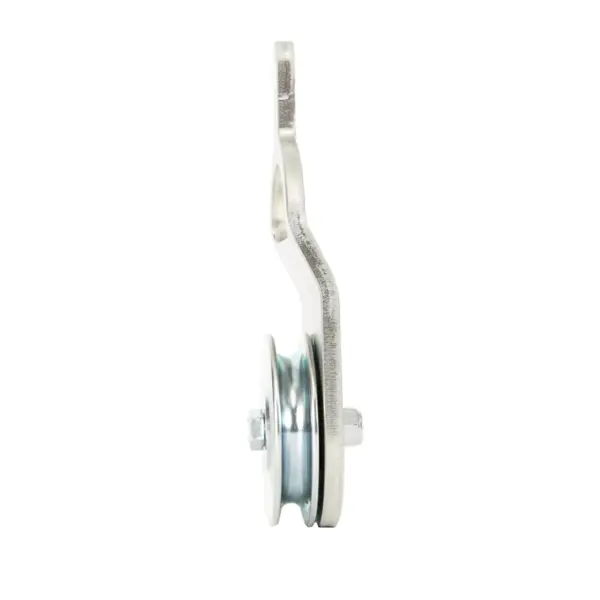

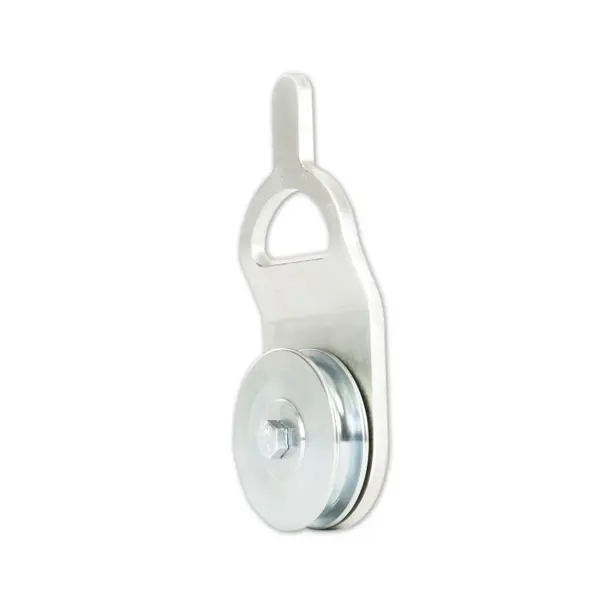

The open-face pulley is designed to pull trees perpendicular to a path when the traction comes from a vehicle. It is also useful for deviating trajectory and get around obstacles. In addition, when installed at height, it creates a pulling angle that allows the tip of the log to be slightly lifted and thus reduces friction on the ground.
Made of steel, it is shock-resistant and is generally used paired with the automatic release PCA-1291. The sheave is smooth and without sharp edges: it will not damage synthetic lines.
Its 100 mm diameter provides excellent efficiency.

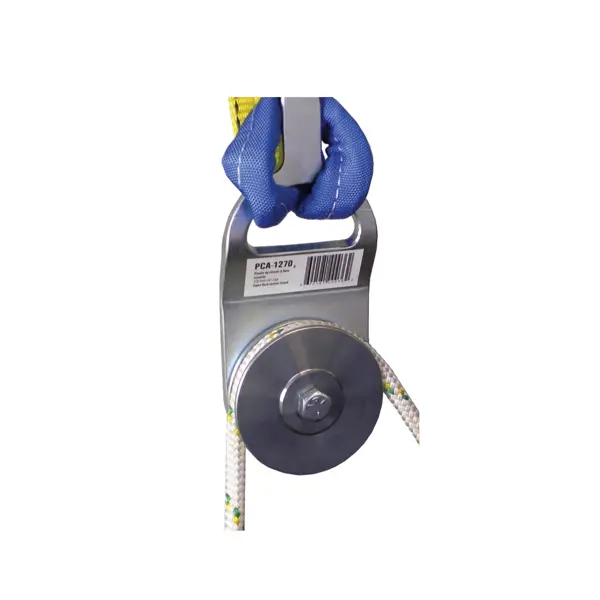

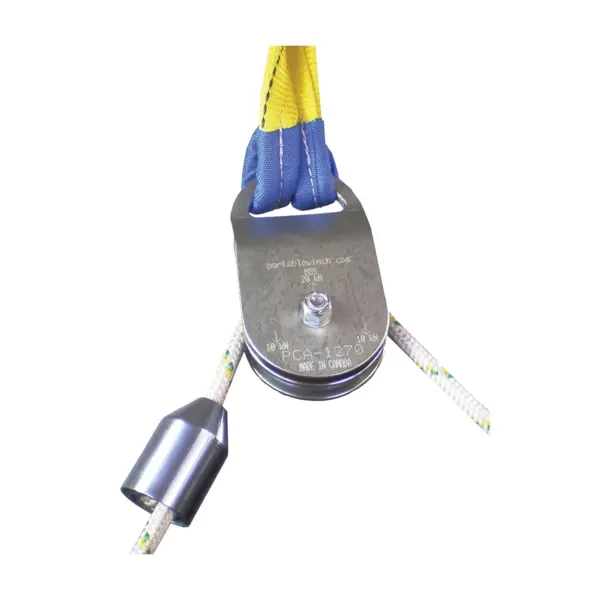

Attach it to a tree with one of our polyster slings.
SPECIFICATIONS
| WLL (working load limit) |
ROPE Ø | SHEAVE Ø | MATERIAL | WEIGHT | |
| PCA-1270 | 20 kN (2039 kg) | 6 to 13 mm | 100 mm | Steel | 2.4 kg |
| BRAND | PORTABLE WINCH |
|---|---|
| PRODUCT CATEGORY | PULLEYS FOR PORTABLE WINCH |
| PRODUCT TYPE | PULLEYS |
