PCA-1275
82V
PCA-1275

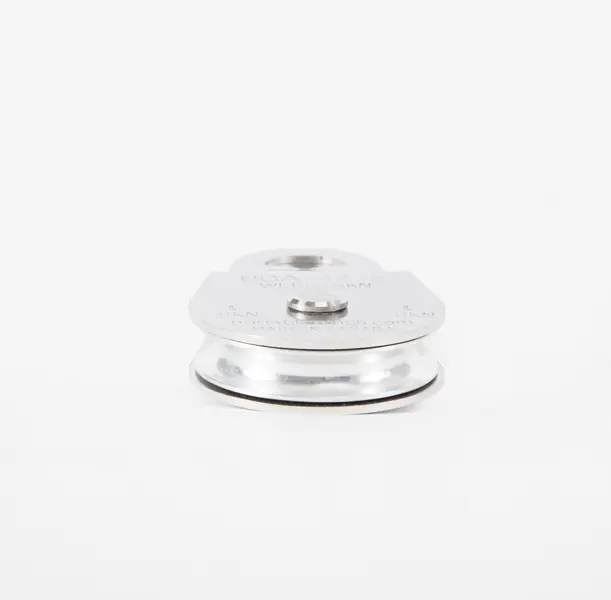

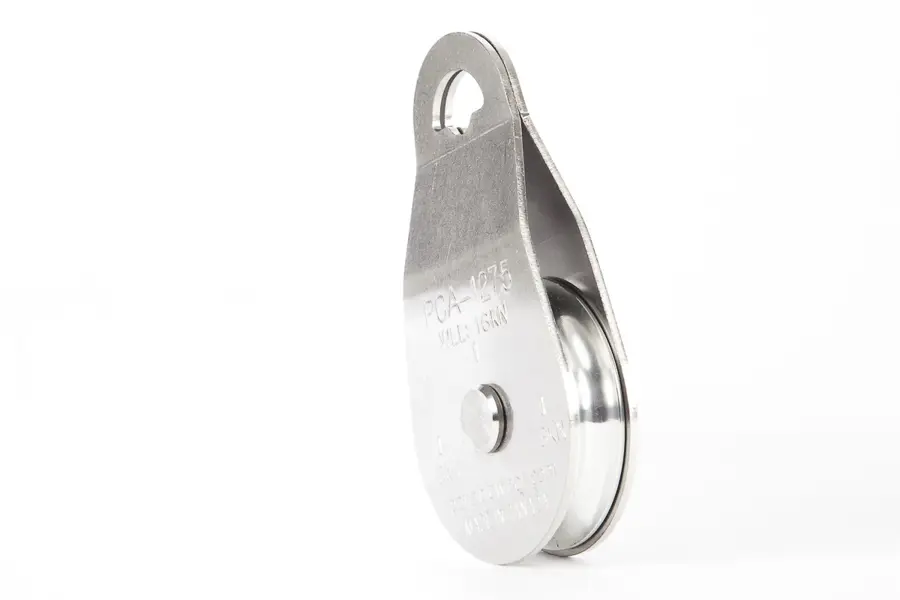

Stainless Steel Single Swing Side Snatch Block 76mm
In stock
{{ selectValue }}
Free in-store pickup
- Experts Advice
- On-site service and warranty
Parcel shipping
Here are some excellent, robust and durable pulleys.
Multiply your pulling power by two, three or four times using pulleys. You can also use them to change the trajectory of the rope or the pulling angle! Their oscillating plates eliminate the need to thread the rope and allow them to be installed very quickly. In addition, they prevent the rope from coming out once closed. All our pulleys feature aluminum sheaves (a wheel with gouge) with shafts made to ensure a flawless operation and an efficiency of 98%, all without maintenance.
Use a carabinerto attach a pulley to a polyester sling.
Learn more about our pulleys on our Pulleys Play List on YouTube.
SPECIFICATIONS
All pulleys made by Portable Winch Co. except PCA-1292 which is made by ISC.
PCA-1292* | PCA-1275 | PCA-1283 | PCA-1274 | PCA-1273 |
700 g | 600 g | 1 kg | 1,1 kg | 1,85 kg |
Ø rope up to 10 mm | Ø rope up to 13 mm | |||
Single pulleys | Double pulley | Single pulley | Double pulley | |
All aluminium | Stainless steel side plates and aluminium sheaves | |||
Ø sheave 62 mm | Ø sheave 76 mm | Ø sheave 100 mm | ||
MBS 50 kN (6,000 kg) | MBS 60 kN (6,125 kg) | MBS 90 kN (9,185 kg) | MBS 135 kN (13,775 kg) |
PRODUCT TYPE | PULLEY |
---|
