PCA-1806
82V
PCA-1806
Pylon Mount Winch Anchor
82V
Only 3 in stock
Free in-store pickup
- Experts Advice
- On-site service and warranty
Parcel shipping

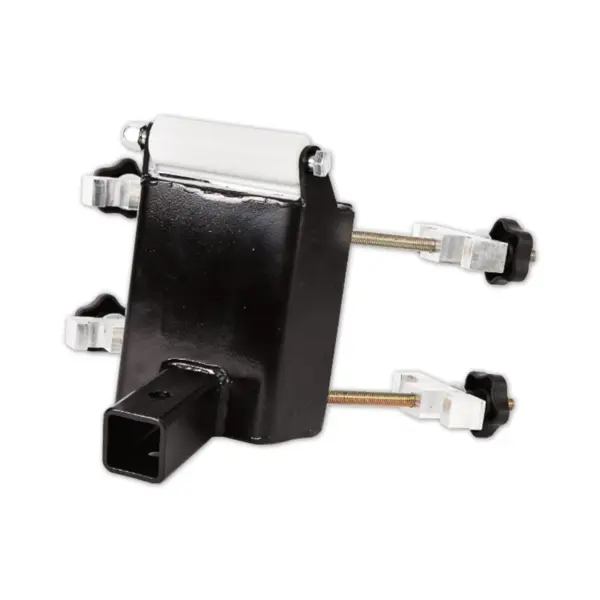

This anchoring system is designed to anchor different models of winches directly to the main frame of a 90° V-shaped pylon. It is the basis of different combinations of accessories. It is easily installed by one person thanks to the integrated magnets at the back of the support that keep it in place during the installation.
No tools required for installation!
For all winches.
SPECIFICATIONS

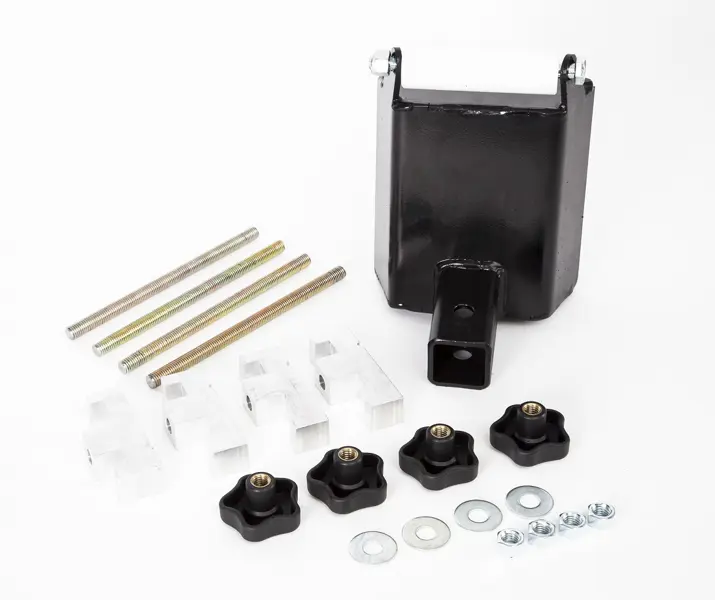

Will grip on most steel angles from 10 cm to 30 cm, single or double layer, with its four (4) reversible aluminium hooks featuring slots of three (3) different widths. These hooks are meant to be tightened in place by hand.Different combinations of accessories can be done with the PCA-1806 depending on the intended application (see figures above).
For instance, when paired with certain accessories, it will permit horizontal pulling. In such case, the winch will face the load and the rope will be in a direct line towards the winch.

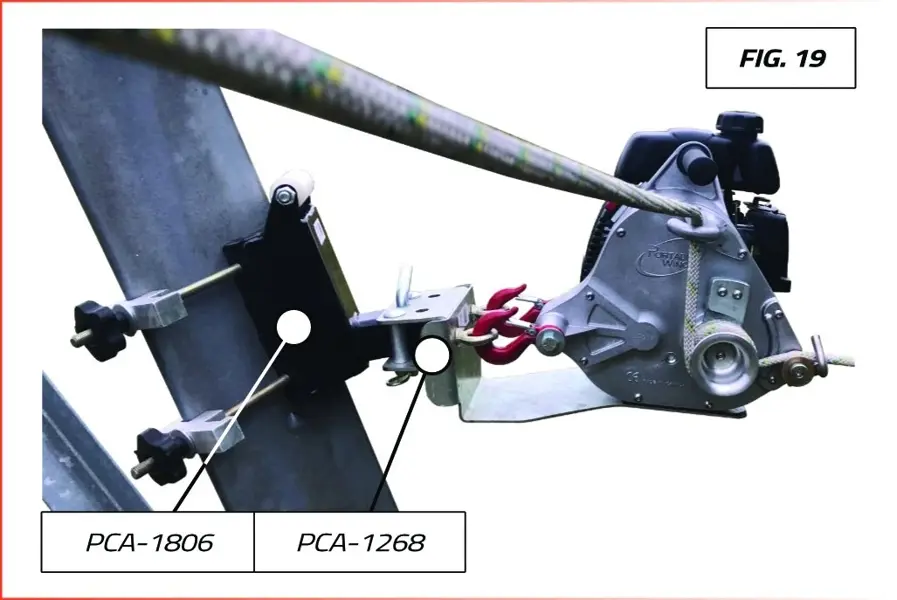

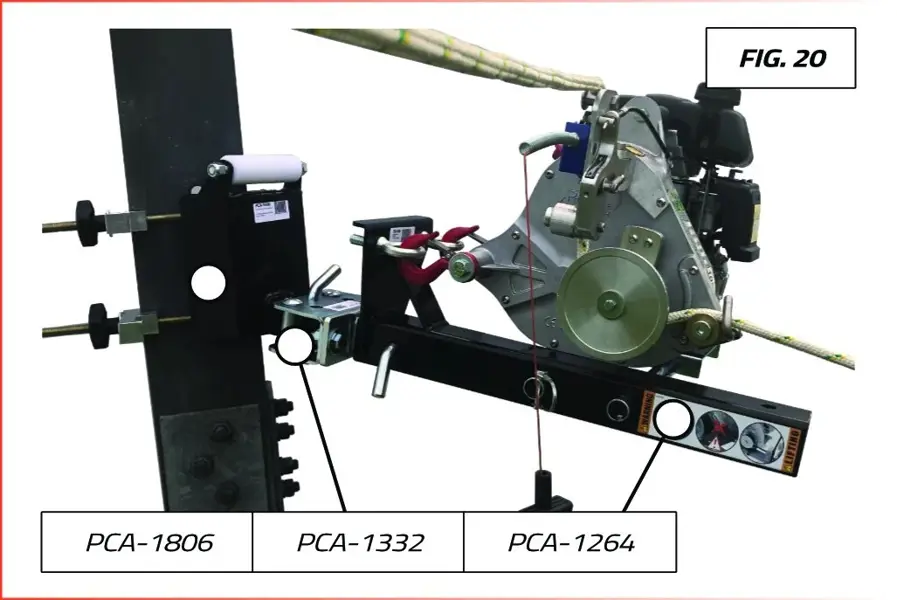

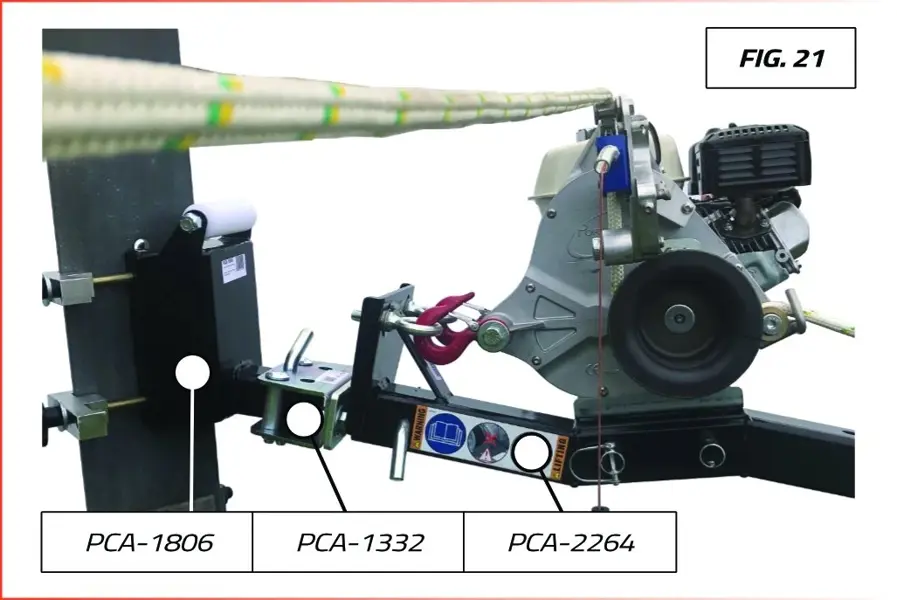

See Fig. 19, 20, 21
Whereas when combined with other accessories it will be used for vertical pulling. In these cases, the winch will face the anchor point and the rope will come from the top to the winch.

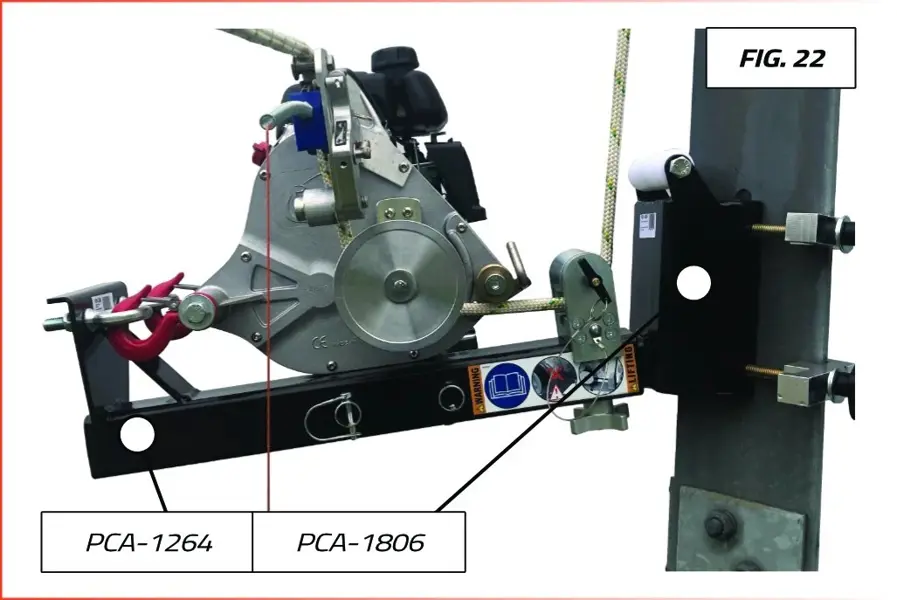

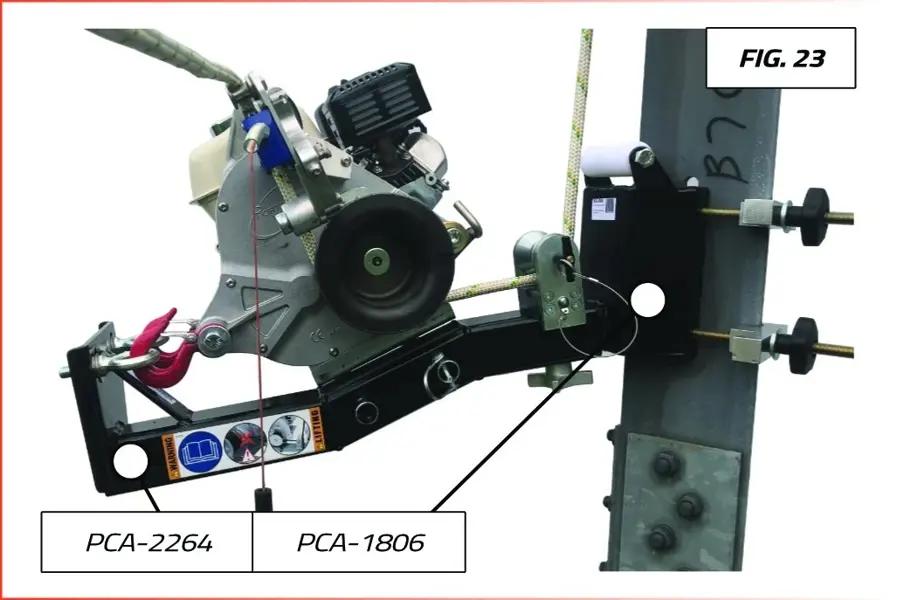

See Fig. 22, 23
Material: Steel with high-resistance paint
Weight: 7.3 kg
Dimensions : 46 cm x 34 cm x 26 cm
| PRODUCT TYPE | WINCH ANCHORING SYSTEM |
|---|
